Case Study:
240 Wyndham Street, Alexandria
Multi-Defect Facade Rectification
Before
The Challenge
The Owners Corporation of 240 Wyndham Street, Alexandria — a multi-storey Class 2 residential building on the corner of Wyndham and Mandible Streets — engaged Wardell Remedial to rectify a complex series of facade defects across both street elevations. Following an independent investigation by structural engineers Lindsay & Associates, distinct defect types were identified including 92 discrete concrete spall locations, widespread cracked render, waterproofing failures, unprotected slab edges and vertical brickwork cracking.
Concrete Spalling — 92 locations
Cracked Render
Waterproofing Failure Unprotected Slab Edges
Vertical Brickwork Cracking
The scale and complexity required a registered builder capable of executing a regulated design across the full facade perimeter of an occupied residential building with full DBP Act compliance.

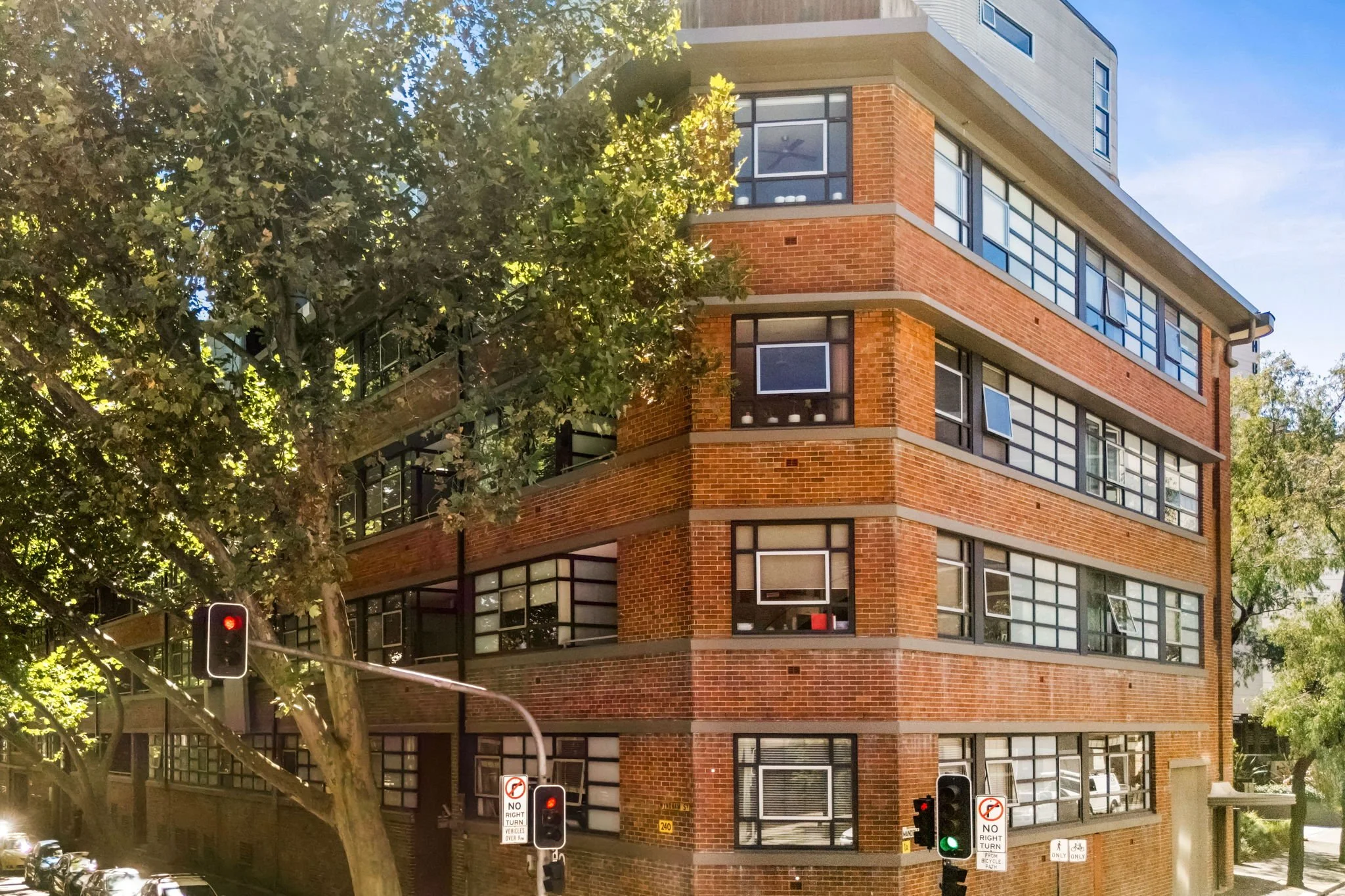

After
The Solution

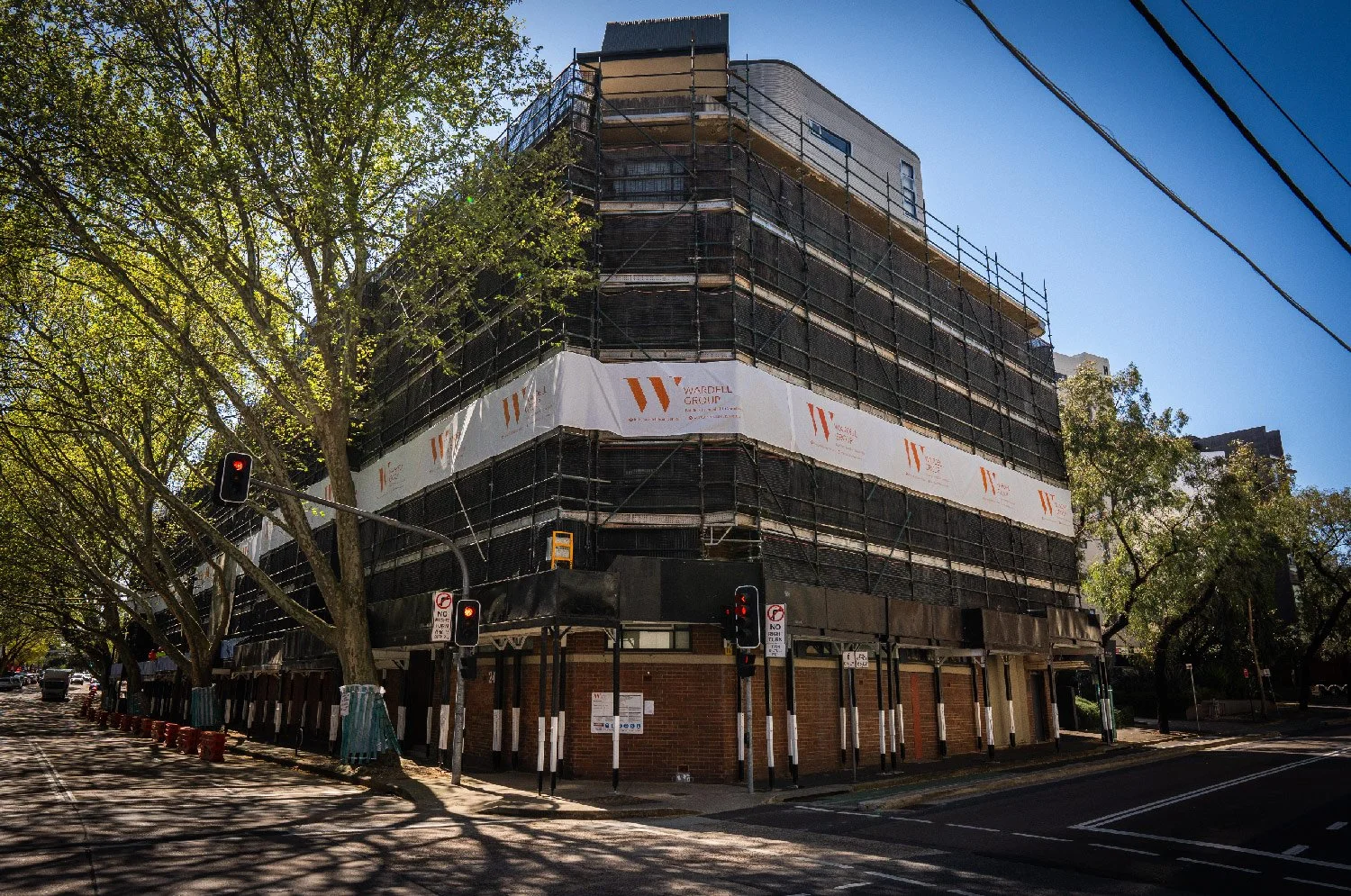

Wardell Remedial delivered the full facade rectification package from a regulated design prepared by Lindsay & Associates. Fred Karamy led delivery, coordinating B-Type gantry hoarding, full perimeter scaffolding across both street elevations, and all NSW Planning Portal submissions.
B-Type gantry hoarding — both frontages
Full perimeter Quick Stage scaffolding
92 concrete spall repairs (1,756L mortar)
Cracked render removal and reinstatement
New acrylic render to awning slabs
Liquid applied waterproof membrane
Facade architectural coating system
Downpipe repairs — 24 locations
Level 5 awning waterproof & roof capping
Full DBP Act compliance — Planning Portal
Key Metrics
PROJECT VALUE
$2.8
Million
PROGRAMME
32 Weeks
ENGINEER
Lindsay & Associates
Why Wardell Remedial
Facade rectification of this scale demands a builder who can manage regulated design execution, multi-trade coordination, B-Type gantry permitting across two council frontages, and full DBP Act compliance documentation — simultaneously, on an occupied residential building. Wardell Remedial is registered under the Design and Building Practitioners Act 2020 and delivers the complete compliance pathway in-house.
